Thermal Transfer Ribbon

There are three basic formulations of thermal transfer ribbon available today. These are Wax, Wax/Resin and Resin. We can supply thermal transfer ribbons in any of these formulations to fit most barcode label printers.All popular sizes of thermal ribbons are ready for immediate delivery, with thousands of others available by special order.
wax ribbon Thermal Transfer Ribbon - Wax Ribbon
WAX RIBBON- A thermal transfer ribbon which uses wax based ink, suitable for paper standard labeling applications which are not subject to harsh conditions
resine ribbon
Thermal Transfer Ribbon - Resin Ribbon
RESIN RIBBON - A thermal transfer ribbon which uses resin based inks to give a high degree of resistance to harsh conditions such as, solvents, outdoor environments. This type of ribbon can also be resistant to washing and dry cleaning.
wax/resin ribbon Thermal Transfer Ribbon - Wax/Resin Ribbon
WAX/RESIN RIBBON - A thermal transfer ribbon which uses a combination of wax and resin based inks, suitable for paper and synthetic labeling applications which will be subject to some harsh conditions.

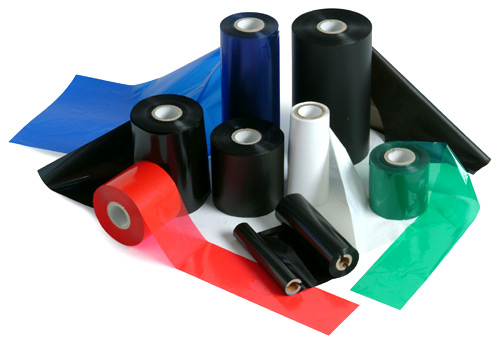

Coloured ink Ribbons Thermal Transfer Ribbon - Coloured Barcode Ribbon
In addition to black, thermal transfer ribbon are also available in numerous colours.The use of colour is increasing considerably. Comparing to Dynic,Armor,our ribbon are always your low cost choice

Thermal Transfer printing

Labels can be printed using several different technologies. One of the most popular methods however is called thermal transfer printing which uses roll-form labels and printing ribbons. This technology needs lower heat to transfer a printed image than some printing methods so you have the widest variety of paper and film materials at your disposal. You also have the most extensive choice of adhesives to fit special labeling applications. Because the bond of a well-matched ribbon to a label can be far superior to other ink technologies, you get the best print durability and you can often avoid the need for a protective film laminate.


sp®  Barcode Ribbon Features List

TYPE
ITEM
QUALITY
Sensitivity
Abrasion resistance
Heat resistance
Solvent resistance
Label Adaptability
Density
Quality Consistance
GW101
Common
5
2
2
2
2
4
4
SW203
Premium
5
2.5
3
2.5
3.5
5
5
ITWB220
Imported/Premium
4.5
2.3
2.8
2.3
3.5
5
5
SM808
Premium
4.5
3
3
3
4.3
5
5
SM806
Premium
4.3
3.6
3.5
3.5
4.5
5
5
NM807
Near Edge
4.6
3.8
3.5
3.5
4
4
5
SR600
Imported/Premium
3.5
4.5
4.5
4
3
4.5
5
CR910
Washable
3.5
4.5
4.8
4.5
2.8
4
5
CSR36
Card printing
3.5
5
5
5
3
4
5
